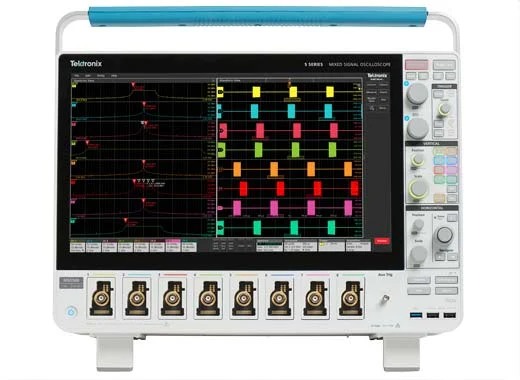

5 Series B MSO Mixed Signal Oscilloscope


Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing. Experience the intuitive user interface appreciated by engineers everywhere.

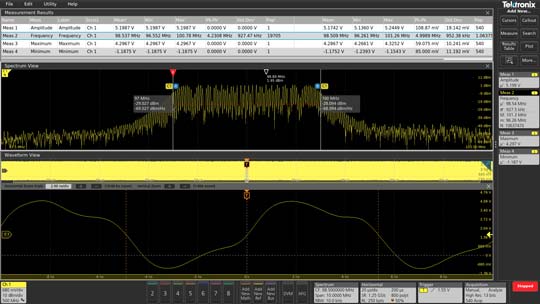

Insightful measurements

See signal details with high-resolution 12-bit analog-to-digital converters. Change your point of view whenever you wish with multi-channel spectrum analysis, measurement statistics, tables and trend plots.

  • 12-bit resolution at 1.25 GHz; 16-bit resolution at 50 MHz
  • Built-in DDCs enable multi-channel, synchronized spectrum analysis
  • Results tables, measurement statistics, and trend plot views

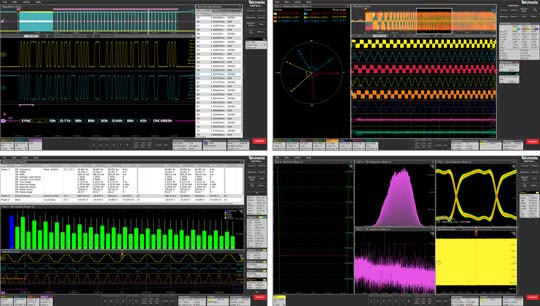

Advanced solutions

The 5 Series adapts to suit your needs with a wide range of application-specific measurements. Add advanced analysis packages individually or install application bundles to address more diverse workloads.

  • Support for over 25 serial protocols covering the most common interfaces
  • Advanced single-phase and three-phase power analysis packages
  • Measurement tools for signal integrity and power integrity
  • Optional Windows® operating system lets you run PC software



More ways to see more signals

Versatile inputs and advanced probing technology let you see more.

  • Up to 8 FlexChannel inputs for up to 8 analog or 64 digital signals, plus an external trigger input
  • Includes 500 MHz or 1 GHz probes with just 3.9 pF input capacitance
  • TekVPI probe interface supports a wide range of active, differential, isolated and current probes

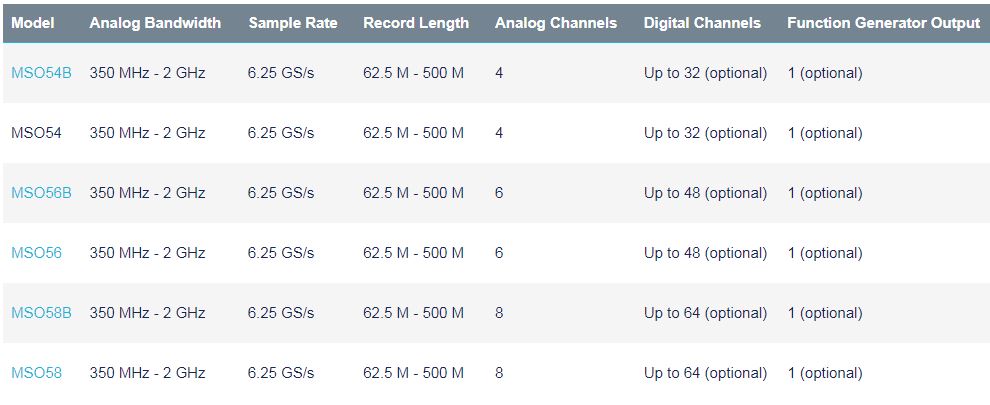

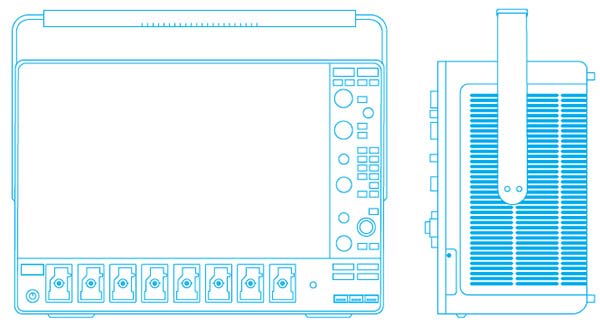

Specification Overview

Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP0581 probe
NEW Auxiliary trigger input

Bandwidth 1
350 MHz, 500 MHz, 1 GHz2 GHz

Sample Rate
6.25 GS/s

Record Length 1
Up to 500 Mpoints on all analog/digital channels

Internal Data Storage 1
NEW 250 GB removable SSD

Protocol Decode 1
Over 25 protocols available

Signal Generator 1
13 standard waveform types, plus arbitrary
NEW 100 MHz maximum frequency

Digital Voltmeter 2
4 digit

Trigger Frequency Counter 2
8 digit

15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution capacitive (multi-touch) touchscreen

1 - Optional and upgradeable
2 - Free with product registration
