6 Series B MSO Mixed Signal Oscilloscope



Troubleshoot and validate high-speed designs with bandwidth that starts at 1 GHz and goes up to 10 GHz . Get accurate measurements with low noise and sample rate up to 50 GS/s . See more of your design with 6- and 8-channel models.



Synchronized multi-channel spectrum analysis

Get 4, 6 or 8 channels of spectrum analysis. Hardware digital downconverters (DDCs) in parallel with time domain signal processing unlock exciting capabilities.

  • Any analog channel can be viewed as a waveform, spectrum, or both
  • Plot and trigger on changes in RF frequency or magnitude
  • Spectrums and time domain waveforms are synchronized to correlate RF and time domain events
  • Spectrum controls such as center frequency and RBW are completely independent of time domain controls





Advanced analysis simplified

Characterize jitter on GHz clocks and serial buses with ease. Bring statistics into your everyday toolkit with integrated measurements. Use the same simple drag and drop action to add advanced and everyday measurements.

  • Automated measurements and trend analysis
  • Spectrum View synchronized multi-channel spectrum analysis
  • Advanced jitter analysis
  • Advanced power analysis
  • Power rail measurements
  • Memory analysis and debug
  • High-speed serial compliance





Fidelity begins at the probe tip

With 4, 6 or 8 FlexChannel® inputs you can browse your circuits with the included 1 GHz probes. Connect high performance single-ended active probes or differential probes, or do both at once with TriMode probes. Connect a TLP058 logic probe and get 8 digital channels on any FlexChannel input to expand your system visibility.

  • Built-in 1 MΩ and 50 Ω input terminations
  • 1 GHz low-loading passive probe for each input, included
  • TekVPI probe interfaces with 10W of probe power per channel for differential, current, power rail, and optically isolated probes
  • TDP7700 Series 4, 6, 8 and 10 GHz TriMode probes -- perfect for measuring high-speed communications

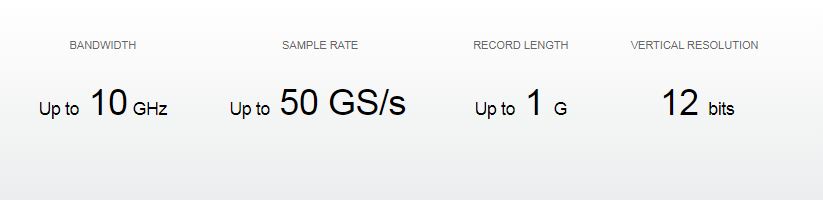

Specification Overview



Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP0581 probe

Bandwidth 1
1, 2.5, 4, 6, 8, 10 GHz

Sample Rate
50 GS/s on 2 analog channels
25 GS/s on 4 analog channels
12.5 GS/s on > 4 analog channels

Record Length 1
Up to 1 Gpoints on all analog/digital channels

Signal Generator 1
13 standard waveform types, plus arbitrary

Digital Voltmeter 2
4 digit

Trigger Frequency Counter 2
8 digit

Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution Capacitive (multi-touch) touchscreen

1 - Optional and upgradeable
2 - Free with product registration


Add capability as soon as you need it

  • Add bandwidth up to 10 GHz

  • Increase record length up to 1 Gpoints on each channel

  • Add logic probes for up to 64 digital channels

  • Add a Windows 10 operating system

  • Add an Arbitrary / Function Generator

  • Add advanced analysis: serial decode/trigger, power, jitter, memory analysis and debug, and automated compliance testing

  • Choose from a wide range of voltage and current probes


What's in the box?

  • One TPP1000 1 GHz, low-C passive probe for each channel, with accessories

  • Front cover with accessory pouch

  • Mouse

  • Power cord

  • Printed Installation Manual covers safety and basic operation

  • Comprehensive built-in online help

  • Certificate of traceability

  • 1-year warranty on the instrument and included probes







                       Contact Us Now for Demo OR Quote
